产品

Workplace

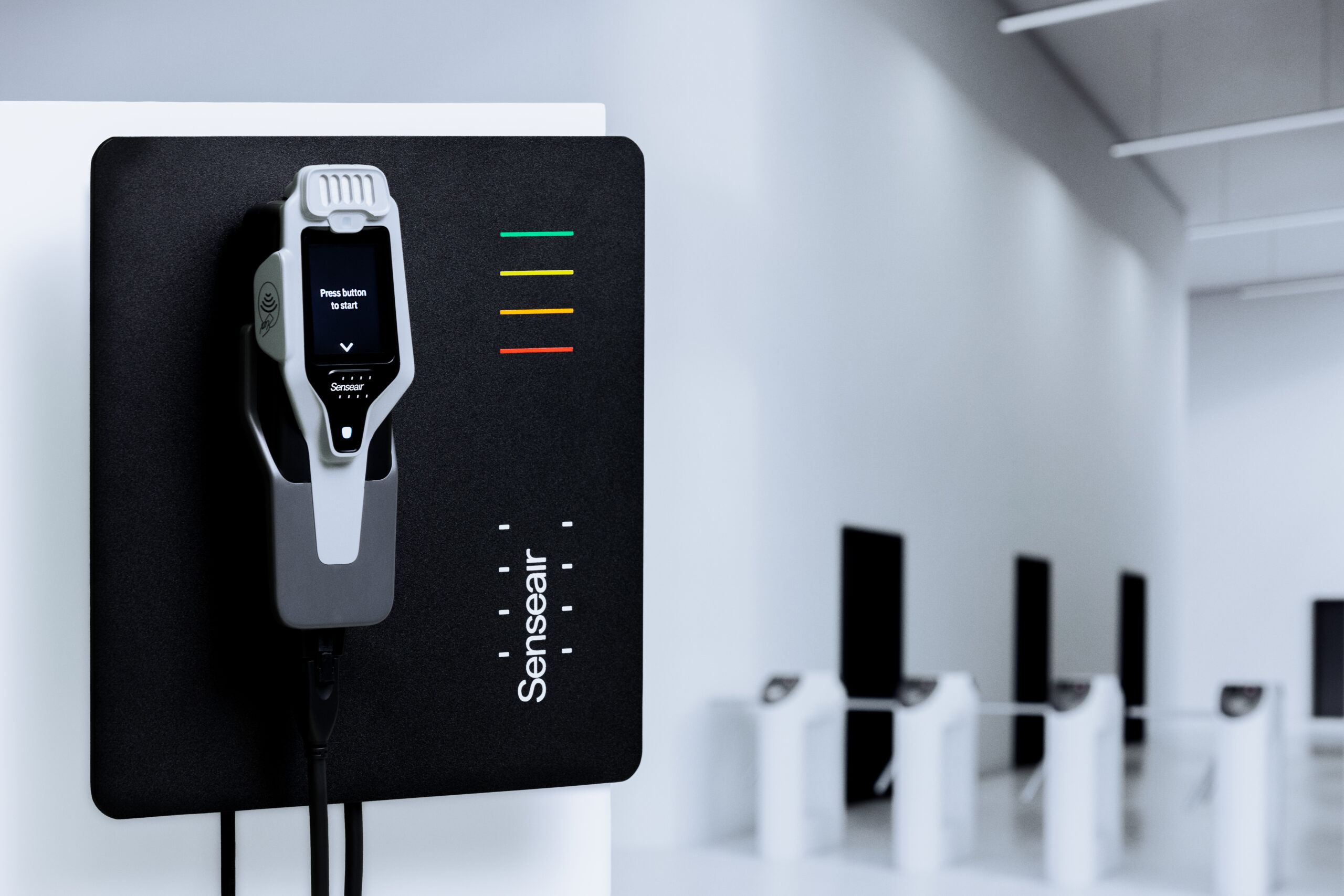

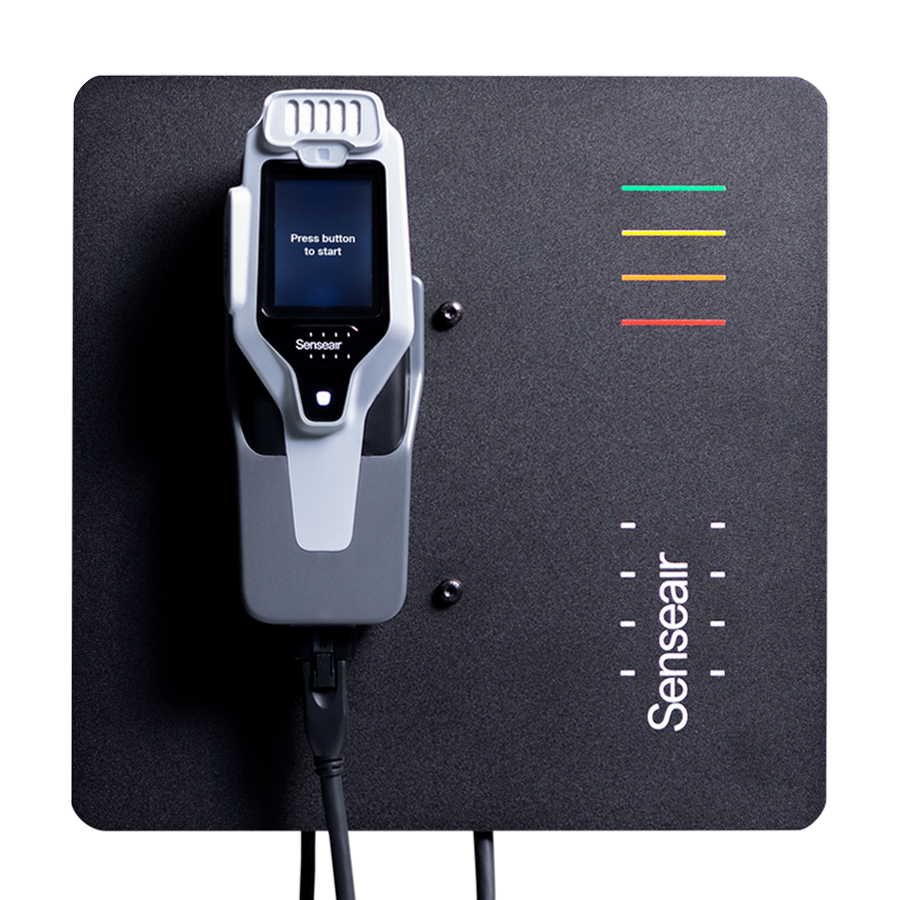

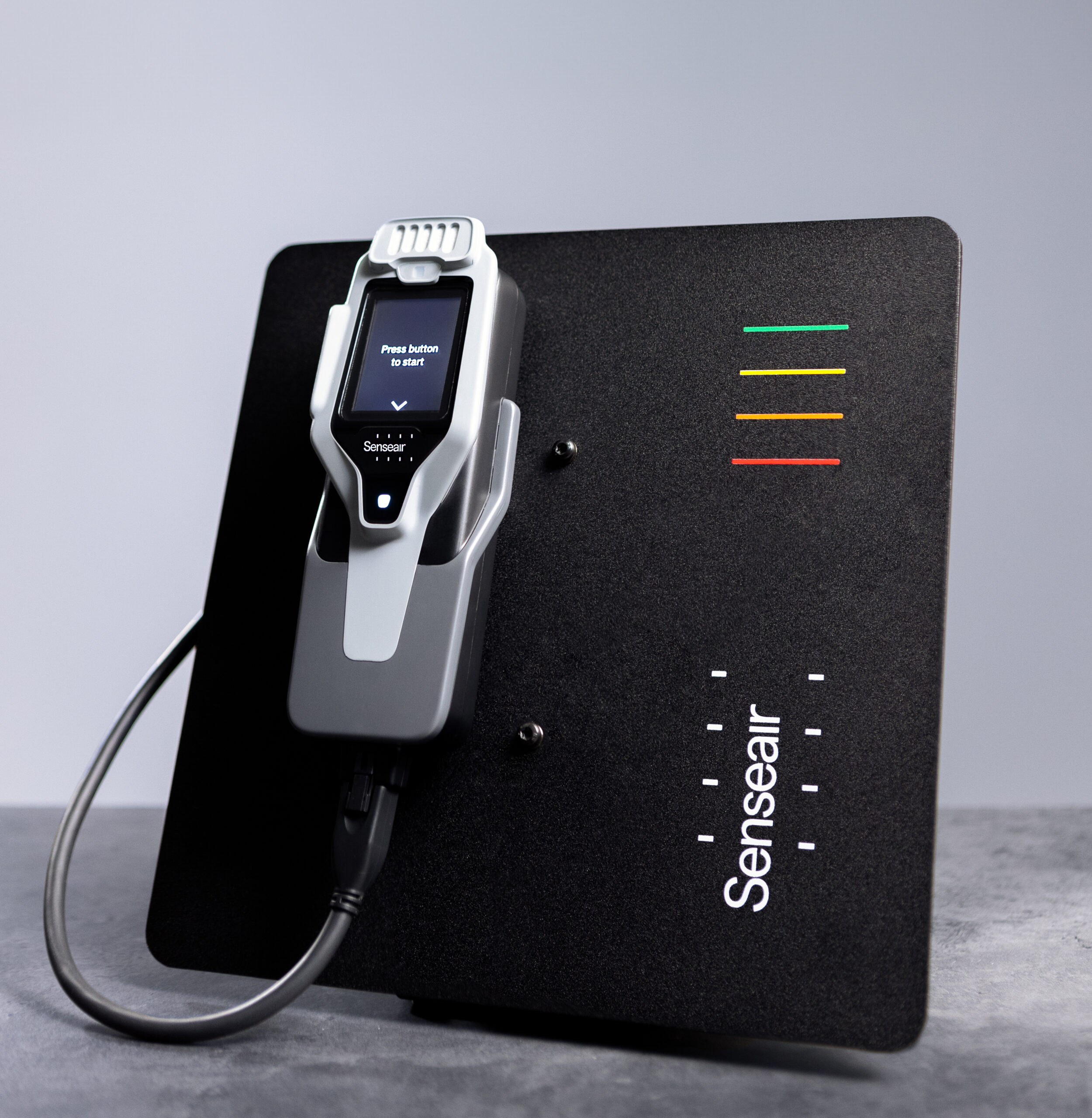

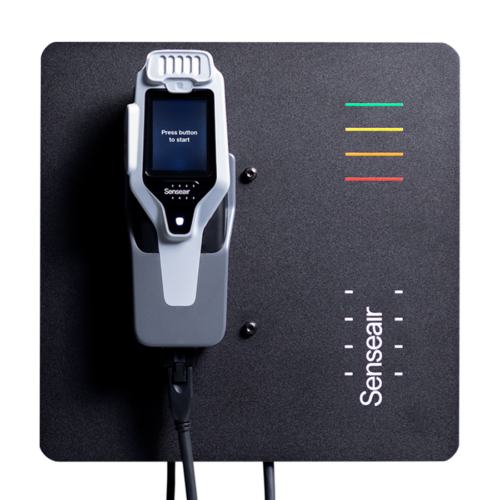

Workplace是一款以用户为中心的非接触式酒精检测设备。该设备易于使用和管理，同时不会影响安全性或现有的工作流程。Workplace能快速测量用户呼出气体中的酒精浓度，确保工作场所的人员保持清醒，并且能避免传统检测中的不适感。

特点

轻松使用
非接触式检测
无需吹嘴
6秒钟快速检测
传感器性能不受使用频次影响
自校正
总体拥有成本低
可与Senseaie SafeStart相连接

订货号	008-15-0011
工作原理	非色散红外（NDIR）
目标气体	乙醇
测量范围	0–4mg/L
精度	±7.5% or ±0.015 mg/L
工作湿度范围	0-95%相对湿度
工作温度范围	-20-70°C
预热时间	TBA
响应时间T90	TBA
峰值电流
平均电流	TBA
通信接口
输出	TBA
符合标准	SAE-J3214 (符合测量性能) CE-mark RoHS Reach WEEE Prop65 PSE (电源及电源线) FCC (电源及电源线)
维护	TBA
预期寿命	TBA
尺寸	300 x 111 x 300 毫米（长 x 宽 x 高）
重量	3300 g
储存温度	-40-75 °C
电源	100 – 240V, 50/60Hz

Workplace

User Manual

Installation Manual

订货号	产品	描述
426-00211	桌架
840-00028	信号线
115-00029	以太网电缆
415-00001	粒子过滤器	32x16mm
